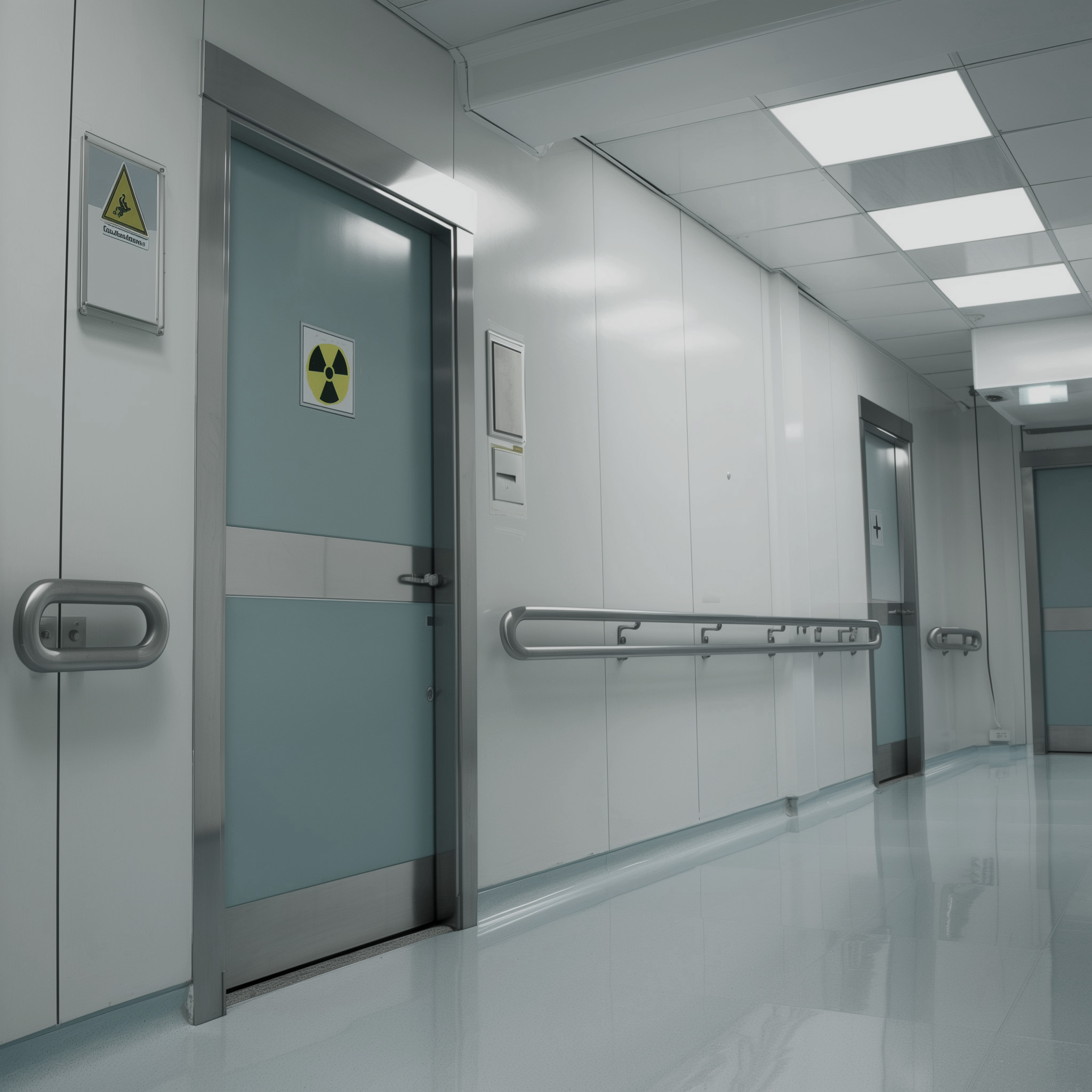

Radiation Doors

Product Overview

AAFD offers radiation door sets featuring lead-lined construction. These sets are meticulously crafted to offer superior shielding against dangerous radiation, particularly in environments prone to radiation hazards.

These specialized doors/frames play a vital role in medical institutions, industrial sites, research facilities, and similar locations where safeguarding against radiation exposure is essential.

Their design is optimized to reduce radiation seepage, thereby guaranteeing the well-being of personnel and the nearby surroundings.

Special Features

  • Stainless Steel Kick Plates

  • Vision Panels
  • Timber Bead
  • Aluminum and Stainless Surrounds
  • Radiation Flaps
  • Double Glazed Venetians
  • ABS and Timber Edging

PVC and Laminate Finishes

  • Acrovyn
  • Acculine
  • Koroguard
  • LI Surfaces- Door Protection HPL
Our radiation doors are lead-lined and available with different lead thickness options to provide varying levels of radiation shielding. Thicker lead layers offer higher levels of protection, suitable for areas with higher radiation levels or specific regulatory requirements.

Lead Rating and Thickness:

  • 5KG/m2 = 0.45mm
  • 10KG/m2  = 0.88mm
  • 15KG/m2  = 1.32mm
  • 20KG/m2  = 1.76mm
  • 25KG/m2  = 2.2mm


  • Dental offices and surgeries
  • OPG/CBCT rooms
  • Operating theaters
  • Diagnostic imaging facilities (X-ray, CT scan rooms)
  • Laboratories
  • Veterinary clinics

Due to the significant variation in options and the diverse radiation containment needs, which are based on specific situations, we encourage you to reach out to us for guidance in crafting a tailored specification.

Click below to view our info sheet for Radiation Door Sets
